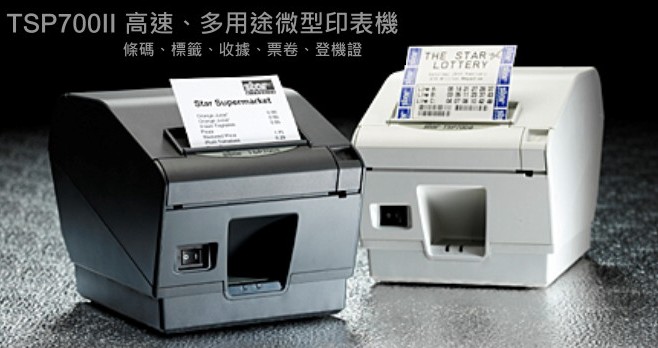

Star TSP700II系列

"Drop-In & Print"

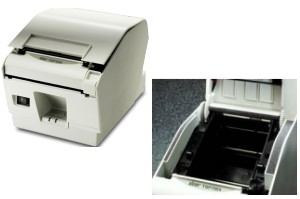

簡易裝紙系統。將紙捲投入印表機,關上上蓋即完成。

Drop-In& Print

防潑水、低噪音

上蓋左右延伸設計,有效防止灰塵和水氣進入。海綿層降低噪音同時保護印表機。

防潑水,防塵,低噪音

雙色列印輸出

配合使用專業的兩色感熱紙張,列印醒目訊息。

雙色輸出

靈活的用紙選擇

● 用紙厚度達0.15mm
適用戲院票券、展覽場門票、貨運標籤、登機證。

● 可調整紙厚度
不因厚紙而降低速度,可全速列印。

● 可使用折疊式票券
由印表機外部導引進印表機列印,票券不捲曲,更具長期收藏的價值。

高速度列印

每秒250mm,列印快速,品質清晰。

精巧設計

無論水平或垂直置放,都能節省占用的面積與體積。

系統相容性高

驅動程式兼容於大多數作業平台,包或 Microsoft WHQL認證

條碼支援

支援PDF417及QR-Code兩種二維條碼,十一種一維條碼。

自動裁刀

可經由軟體控制裁刀紙模為全切紙或半切紙,裁刀壽命達200萬次。

高信賴度

全機MCBF達六千萬行

Product Name TSP700II Series
Printer Method Direct Thermal Line Printing
Print Speed up to 250mm/second
Receipt Per Minute throughput speed Up to 53 receipts per minute
(standard 20 line receipt)
Print Resolution
(vertical x horizontal)
203 x 203 dpi, 406 x 203 dpi
Print Density 7 step selection by memory switch or control command
Character Matrix 12 x 24 dots, 9 x 24 dots
Two Colour Print Capability Red, Blue and Black
(special paper required)
No. of Columns 48 / 64 or 53 / 71
(depends on Paper Width)
incl. 1st column print for lottery applications
Character Set ANK 95, 32 Int 128 Graphic
International Code Pages Star Mode = 40. ESC/POS= 6 & 1 Blank allowing an additional character page to be added
Barcodes 9 versions / PDF 417, QR
(Maxicode Option Pending)
Line Spacing 3mm or 4mm + Programmable
Paper Feed Speed up to 250mm/sec.
Paper Specifications: Width 80mm standard. 82.5 & 58mm also available by simply moving installed paper guide
Weight 0.065 ~ 0.15mm / 63 ~ 150gsm
Roll Diameter 100mm
Easy-Load "Drop-In & Print"
Paper End / Black Mark Sensor Standard
Near End Sensor Two sensors for horizontal and vertical use
Maximum Print Width 80mm paper = 72mm, 82.5 paper = 80mm,
58 paper = 52mm
Top Margin 13mm default (3mm selectable via Memory Switch)
External Straight Paper Feed Path Standard
Autocutter (guillotine) Full or Partial cut selectable
(centre cut)
Logo Store 2 Mbit Flash ROMs with graphic management software
Flash ROM 16Mbits
Interface versions Serial, Parallel, USB, Ethernet, Bluetooth
Emulation Star Line Mode & ESC/POSTM
Peripheral Drive Circuit 2 circuits, (24V max. 1A) 1 Compulsion input
Power Consumption Operating / Waiting - Average 1.8 / 0.15A
Operating Conditions: Temperature 5°C to 45°C
Humidity 10% ~ 90% RH (without condensation)
Storage Conditions: Temperature -20 to 60°C
Humidity 10% ~ 90% RH

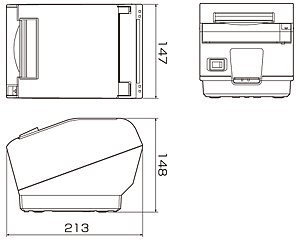

Dimensions (without interface cover) 147 (w) x 213 (d) x 148 (h) mm / 1.75 Kg
Safety Standards UL, C-UL, TÜV, FCC, VCCI, EN55022, CE, Gost
Reliability Printer 60 million lines (MCBF)
Autocutter 2 million cuts
Options Splash Proof cover
Parallel, Serial, Ethernet, USB Interface
Wall & Vertical Mount Kits
(Basic wall mount kit supplied with printer)
Buzzer
